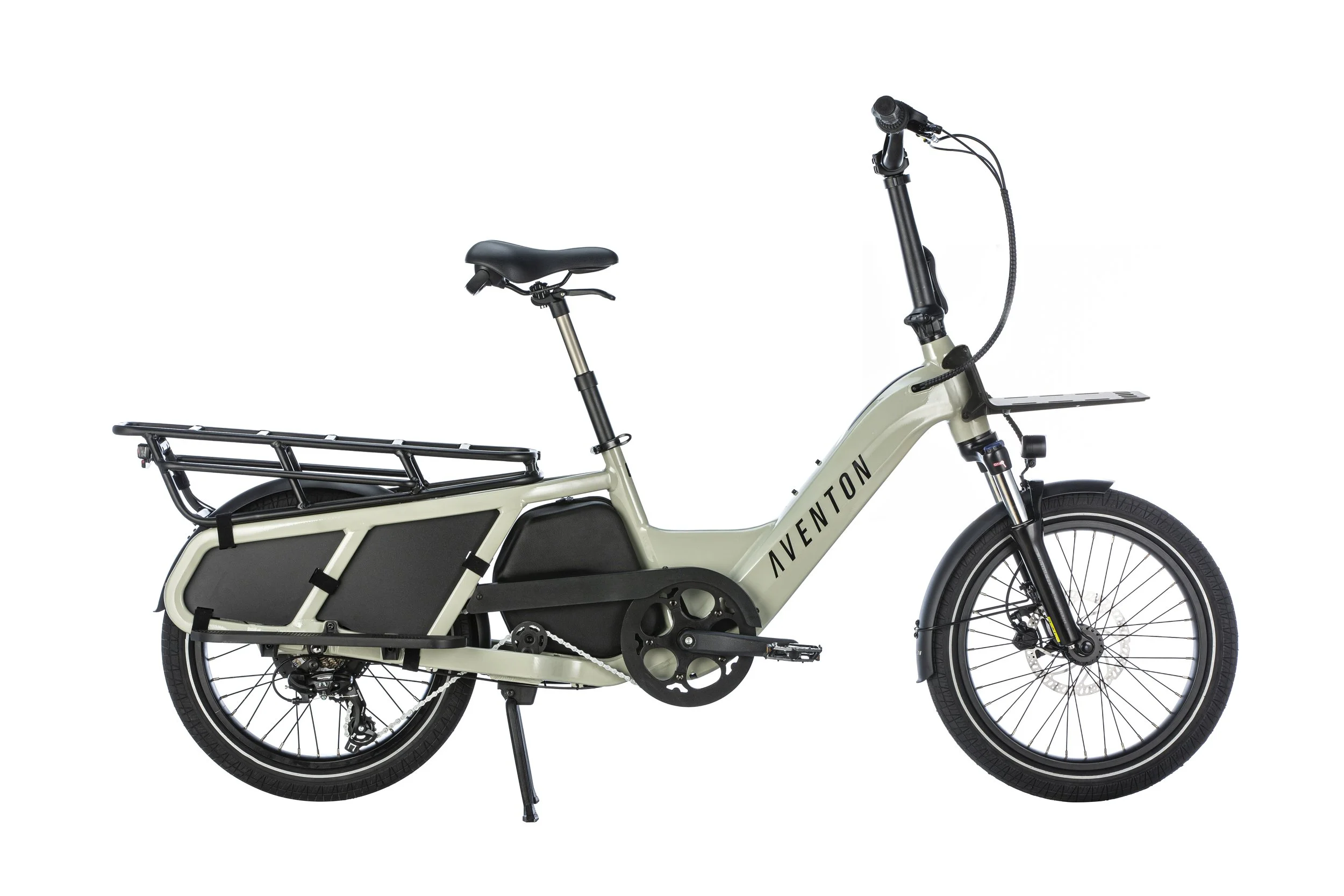

Aventon Abound Cargo Bike
Aventon Abound Cargo Bike
Haul it all with the Abound, Aventon’s first ever cargo ebike! Its versatility and step-through frame puts the you in you-tility. Rack it, stack it, and load the kiddos, too! Equipped with a torque sensor and powerful 750W rear hub motor, getting around with everything you need in tow has never been easier. Let Abound do most of the heavy lifting by switching between the four new pedal assist levels: eco, tour, sport, and turbo. The all-new turn signal functionality alerts others that you’re making moves, while the front headlight sheds light on the road ahead. With Abound, the possibilities are boundless.
The Abound ships as a Class II ebike, with pedal assist and throttle. The Abound will also operate with the throttle unplugged and removed, should you want to ride in an area where throttles are prohibited. Aventon ebikes are built to the IPX4 water-resistant standard. IPX4 means that your bike is resistant to water splashes from any direction. This means it’s OK to ride your ebike in light rain. It won’t be harmed by spray from a wet road or raindrops. Your ebike is not intended to be exposed to prolonged rain or submerged or subjected to a pressurized spray. Don’t use a pressure washer or sprayer to clean your ebike. *Using PAS 1 throughout flat terrain with a rider weight of 160 lb.
MOTOR
750W (Sustained), 48V Brushless Rear Hub Motor
THROTTLE
Throttle on demand - Throttle from a complete stop
DISPLAY
LCD Smart Easy Read Display with Backlight, Colorful screen with app
SPEED
Up to 20 MPH on Pedal Assist
BATTERY
Removable Internal Lithium-ion 48V, 15Ah (720Wh)
SENSORS
Torque Sensor
PEDAL ASSIST
4 Levels
CHARGER
48V 3 Amp Fast Charger, 4-5 Hour Charging
RANGE
Up to 50 Miles* on PAS 22 Miles on Throttle
FRAME
6061 Single-Butted Aluminum Alloy with Internal Battery
WEIGHT
81 lbs
PEDALS
9/16' Alloy Platform
FORK
Suspension Fork with 50mm travel, with lockout
TOTAL WEIGHT LIMIT
440 lbs
REAR RACK WEIGHT LIMIT
143 lbs
CENTER STAND
Included, Center Mount
BOTTOM BRACKET
Square Taper, Sealed, Torque Sensor
CRANKSET
170mm w/ 52 T
REAR DERAILLEUR
7 Speed
CASSETTE
14-28T, 7 Speed
SHIFT LEVER
7 Speed Twist
BRAKES
Hydraulic Disc Brakes
CHAIN
148 Link, 7 Speed
RIM
Double Wall Aluminum 36h Front & Rear
SPOKES
Black Stainless 13G Front / 12G Rear
TUBES
Butyl Rubber, Schrader Valve
HUBS
36H Disc Nutted Front, Nutted Rear
TIRES
20" x 2.4" Puncture Resistant, Reflective Sidewalls
SADDLE
Aventon Saddle
SEATPOST
Dropper Seatpost, 30.9mm x 440mm
STEM
Folding, Height Adjustable, 31.8mm, 9 Degree Rise
SEAT CLAMP
34.9 mm Quick Release
HANDLEBARS
Aluminum 31.8mm, 700mm
HEADSET
Sealed Bearing Headset
GRIPS
Ergonomic Comfort
FOOTBOARDS
Aluminum
STORAGE BAG
Polyester, EVA Waterproof
